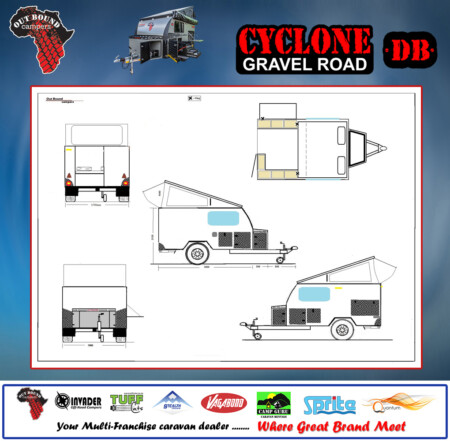

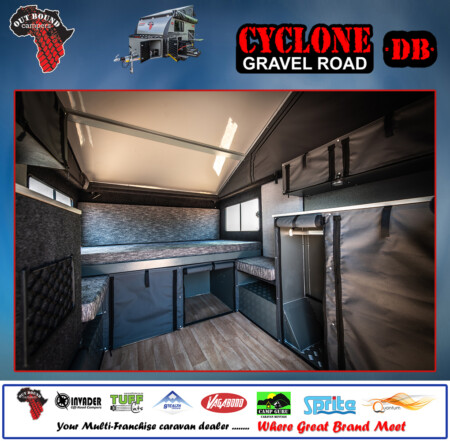

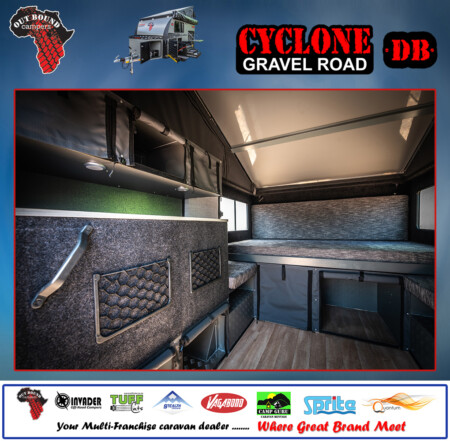

The Cyclone DB Double Bed camper is an OutBound Camper Trailer. Overall Width is 1950mm with an overall length of 4400mm. See the pictures and specs below for more information.

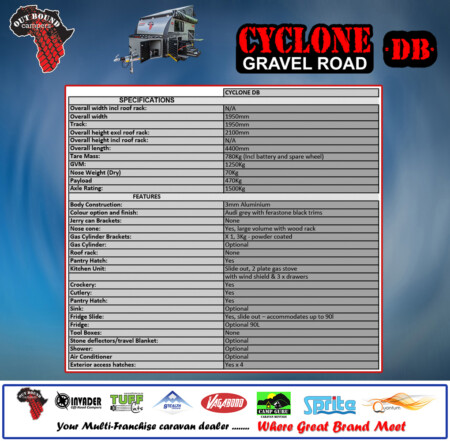

| SPECIFICATIONS | |
| Overall width incl roof rack: | N/A |
| Overall width: | 1950mm |
| Track: | 1950mm |
| Overall height excl roof rack: | 2100mm |
| Overall height incl roof rack: | N/A |
| Overall length: | 4400mm |
| Tare Mass: | 780Kg (Incl battery and spare wheel) |
| GVM: | 1250Kg |
| Nose Weight (Dry): | 70Kg |
| Payload: | 470Kg |
| Axle Rating: | 1500Kg |
| FEATURES | |
| Body Construction: | 3mm Aluminium |
| Colour option and finish: | Audi grey with ferastone black trims |
| Jerry can Brackets: | None |

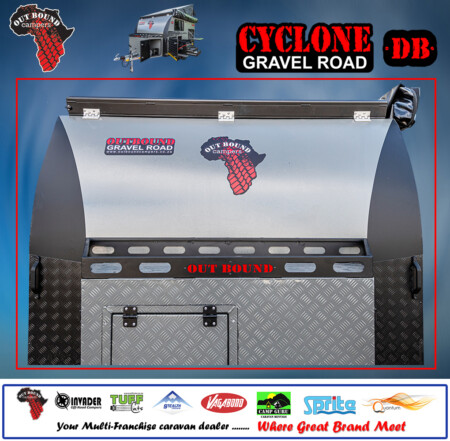

| Nose cone: | Yes, large volume with wood rack |
| Gas Cylinder Brackets: | X 1, 3Kg – powder coated |
| Gas Cylinder: | Optional |
| Roof rack: | None |
| Pantry Hatch: | Yes |
| Kitchen Unit: | Slide out, 2 plate gas stove with wind shield & 3 x drawers |
| Crockery: | Yes |
| Cutlery: | Yes |
| Sink: | Optional |
| Fridge Slide: | Yes, slide out – accommodates up to 90l |
| Fridge: | Optional 90L |
| Tool Boxes: | None |
| Stone deflectors/travel Blanket: | Optional |
| Shower: | Optional |
| Air Conditioner: | Optional |
| Exterior access hatches: | Yes x 4 |

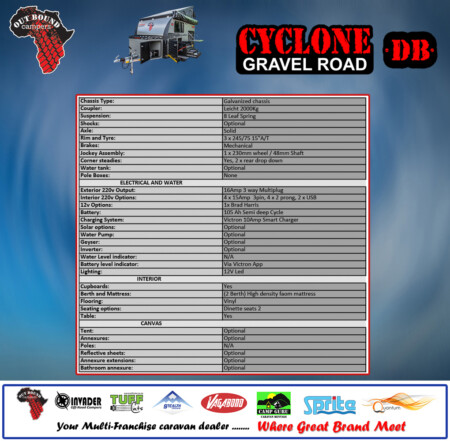

| CHASSIS | |
| Chassis Type: | Galvanized chassis |
| Coupler: | Leicht 2000Kg |
| Suspension: | 8 Leaf Spring |
| Shocks: | Optional |
| Axle: | Solid |
| Rim and Tyre: | 3 x 245/75 15″A/T |
| Brakes: | Mechanical |
| Jockey Assembly: | 1 x 230mm wheel / 48mm Shaft |
| Corner steadies: | Yes, 2 x rear drop down |
| Water tank: | Optional |
| Pole Boxes: | None |
| ELECTRICAL AND WATER | |
| Exterior 220v Output: | 16Amp 3 way Multiplug |
| Interior 220v Options: | 4 x 15Amp 3pin, 4 x 2 prong, 2 x USB |
| 12v Options: | 1x Brad Harris |
| Battery: | 105 Ah Semi deep Cycle |
| Charging System: | Victron 10Amp Smart Charger |
| Solar options: | Optional |
| Water Pump: | Optional |
| Geyser: | Optional |
| Inverter: | Optional |
| Water Level indicator: | N/A |
| Battery level indicator: | Via Victron App |
| Lighting: | 12V Led |

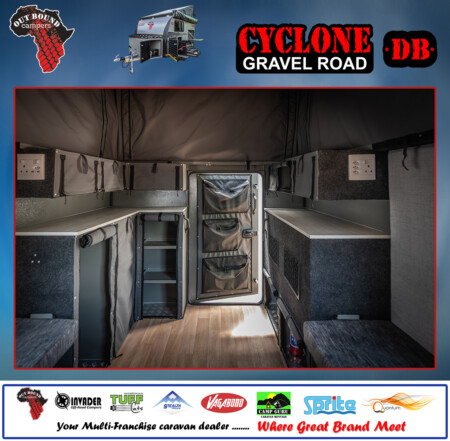

| INTERIOR | |

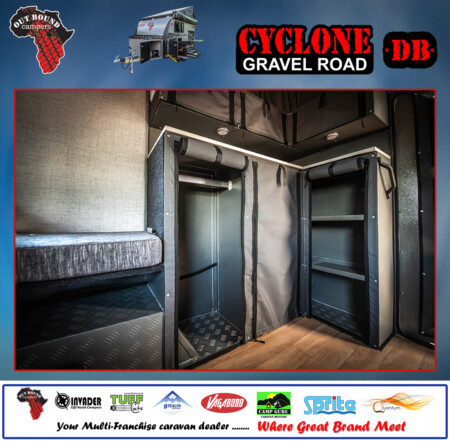

| Cupboards: | Yes |

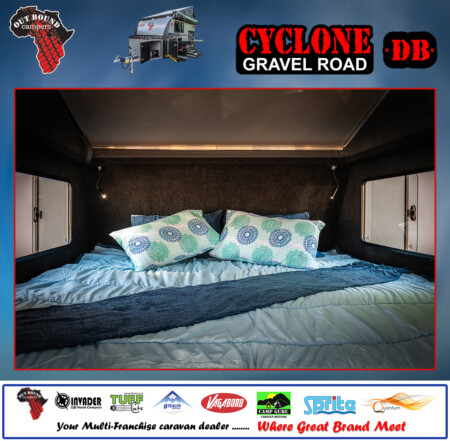

| Berth and Mattress: | (2 Berth) High density foam mattress |
| Flooring: | Vinyl |

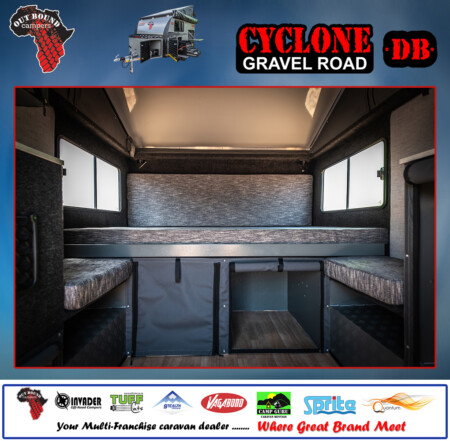

| Seating options: | Dinette seats 2 |
| Table: | Yes |
| CANVAS | |
| Tent: | Optional |
| Annexures: | Optional |
| Poles: | N/A |
| Reflective sheets: | Optional |
| Annexure extensions: | Optional |
| Bathroom annexure: | Optional |
